Our Product
Crawler Crane Undercarriage Parts

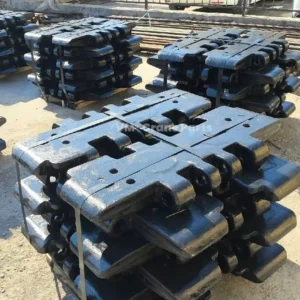

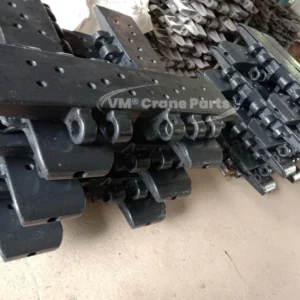

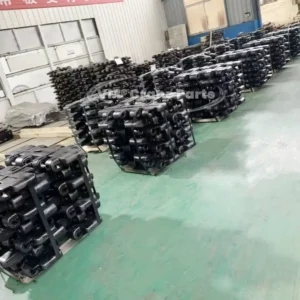

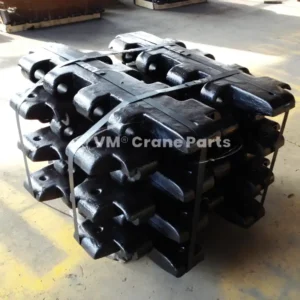

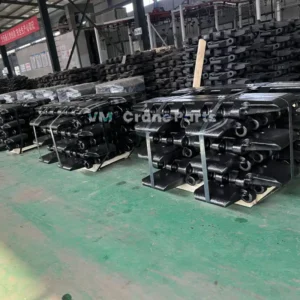

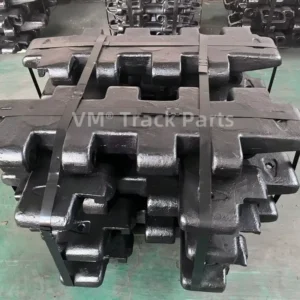

The crawler track shoe is composed of track shoes and track pins, which can travel and turn on uneven ground. The function of the crane track shoe is to support the weight of the entire crawler crane and provide power for travel and turning.

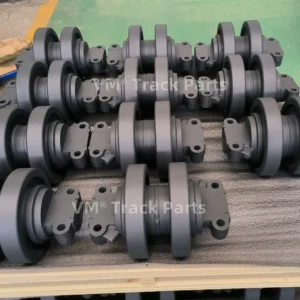

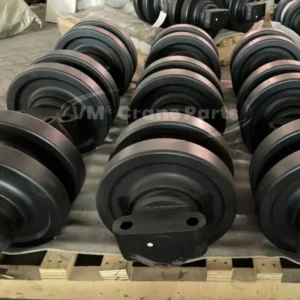

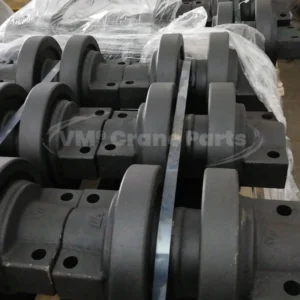

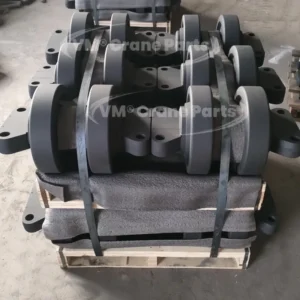

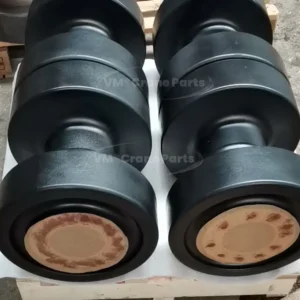

Crawler crane bottom rollers are mainly used to support the crane body and guide the movement of the crawler track shoes. The crawler crane bottom rollers are usually located above the crane track shoes, transferring the weight of the locomotive to the ground. The crane track rollers can also prevent the crawler crane track shoes from moving laterally relative to them, ensuring their stability and safety under various working conditions.
Crane top rollers are wheels mounted on the top of the crane undercarriage, and the main materials are 40Mn2. Proper maintenance of the crawler crane top rollers is essential to ensure safe and efficient operation, as any problems may affect the performance and load-handling capabilities of the crane.
The crawler crane idler is mainly used to guide and support the crawler track shoe. Located in front of the chassis, it prevents slipping and instability by maintaining proper tension and ensuring proper alignment of the track.The idler can also absorb vibrations during operation, thereby improving the stability and safety of the entire machine.

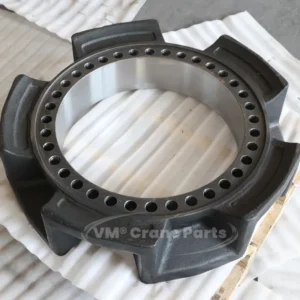

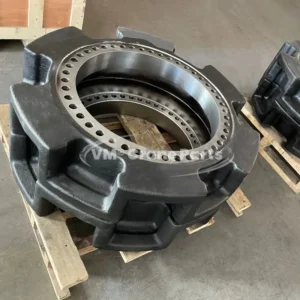

Crane sprockets are divided into bolt type and spline type, and the main material is 35SiMn. It facilitates the movement of the crane by converting the engine power into the traction of the crawler. This design not only improves the performance of the crane but also helps to reduce the overall equipment cost.
The crawler track shoe is composed of track shoes and track pins, which can travel and turn on uneven ground. The function of the crane track shoe is to support the weight of the entire crawler crane and provide power for travel and turning.
Crawler crane bottom rollers are mainly used to support the crane body and guide the movement of the crawler track shoes. The crawler crane bottom rollers are usually located above the crane track shoes, transferring the weight of the locomotive to the ground. The crane track rollers can also prevent the crawler crane track shoes from moving laterally relative to them, ensuring their stability and safety under various working conditions.
Crane top rollers are wheels mounted on the top of the crane undercarriage, and the main materials are 40Mn2. Proper maintenance of the crawler crane top rollers is essential to ensure safe and efficient operation, as any problems may affect the performance and load-handling capabilities of the crane.
The crawler crane idler is mainly used to guide and support the crawler track shoe. Located in front of the chassis, it prevents slipping and instability by maintaining proper tension and ensuring proper alignment of the track.The idler can also absorb vibrations during operation, thereby improving the stability and safety of the entire machine.
Crane sprockets are divided into bolt type and spline type, and the main material is 35SiMn. It facilitates the movement of the crane by converting the engine power into the traction of the crawler. This design not only improves the performance of the crane but also helps to reduce the overall equipment cost.
Recent Work
Application Scenario
Construction Industry
Port and Logistics Industry
Energy Development Industry
Shandong Value Machinery Manufacture CO., Ltd. is an ISO9001-certified comprehensive enterprise focusing on the production and sales of crawler crane undercarriage parts. Our main products include crane track shoes, bottom rollers, top rollers, idlers, and sprockets, which are widely used in various crawler cranes.
The company spans an area of over 5,000 square meters, featuring more than 10 production workshops and over 40 advanced automated production lines. These production lines and more than 100 high-precision processing lathes enable us to meet large-scale production needs and ensure strong supply capabilities. We are committed to providing customers with high-quality crane parts through efficient production processes and strict quality control.
VM® has a professional technical team, sales team, delivery team, and after-sales team to ensure that every link from crawler crane undercarriage part research and development to after-sales support can function efficiently and provide customers with comprehensive and high-quality services.
VM® Track Parts
WHO WE ARE
00 +
Production Experience
000 +
Crane Brand
Customized Service
24-Hour Service
Technical Support Service
Authoritative Certification · Quality Assurance
We hold multiple certifications, including ISO9001:2015, SGS, and GPSR. All crawler crane parts are manufactured to stringent standards to ensure product quality.
Why Choose Us
Manufacture
Advanced production technology
More than 50 sets of automated finishing machinery and equipment ensure the high precision and durability of crawler undercarriage parts.
OEM quality assurance
Sany, XCMG OEM factory, provides you with OEM quality crane undercarriage parts.
Strong supply capacity
10+ automated production lines, 20+ production workshops, to ensure timely supply of crane parts.
The Real Feedback From Our Client
Nippon Sharyo Dhp80 Crane Undercarriage Parts
A Russian construction company purchased Nippon Sharyo Dhp80 track shoes, Dhp80 sprockets, and Dhp80 idlers from us. Seven months after the order was placed, the customer proactively provided feedback, praising the undercarriage parts for their high wear resistance, smooth operation, and overall performance far exceeding expectations, significantly improving the equipment’s reliability and operational efficiency. Below are photos provided by the customer.
Sumitomo SC1000 Crane Undercarriage Parts
Below are photos of the Sumitomo crane undercarriage parts we received from our Korean customer, including: Sumitomo SC1000 track rollers and carrier rollers. The customer sent us photos immediately upon receiving the products, praising our sturdy and careful packaging, noting that the products arrived undamaged.
IHI CCH2000 Crane Undercarriage Parts
A customer in Singapore messaged us saying that our IHI CCH2000 top rollers and IHI CCH2000 sprockets are of very precise dimensions, easy to install, and perfectly match the IHI CCH2000 crane, significantly saving labor and time costs. They also indicated that they will continue to purchase other crane undercarriage parts in the future.
Question
Do You Have Questions For Our Crawler Crane Parts
01. Do your crawler crane parts have a warranty period?
Our warranty policy provides comprehensive protection for all crawler crane parts for 2,500 working hours. During this period, we guarantee the safety of our high-quality crane parts if any problems arise due to manufacturing defects or material flaws. Customers can choose a full refund or free replacement, ensuring peace of mind when buying. We are committed to quality and customer satisfaction, and our warranty reflects our confidence in the reliability and performance of our high-quality crane parts. If you have any questions, our customer service team is always here to help.
02. Can you provide installation guidance?
Of course, we are happy to provide installation guidance. Our after-sales team is composed of experienced professionals who can answer any questions you may have during the installation process. In addition, we have written detailed guidance documents covering the installation steps and precautions of the crane undercarriage parts to help you complete the installation more smoothly. We are committed to ensuring that your installation process is as smooth as possible and can promptly resolve any challenges you may encounter. If you have any questions or need additional support during the crane undercarriage parts installation process, please feel free to contact our customer service team.
03. How long does it take for your crawler crane parts to be shipped?
Our crane parts are usually shipped on time within 4 to 14 days. We know that time is important to our customers, so we strictly follow the production schedule to arrange the shipment of crane undercarriage parts to ensure that you can receive the required crane undercarriage parts in time at the critical moment in your project schedule. Whether it is an urgent order or a regular order, we will do our best to ensure efficient logistics arrangements and excellent customer service to meet your needs.
04. Do you support customization?
Yes! We can customize crawler crane parts with exclusive sizes, colors, and materials for our clients. In February 2025, we customized a special HITACHI KH180-3 track roller based on the dimensions provided by the client, and received a satisfactory response from them.
Updates
Articles & Blog Posts With Useful Information
A Comprehensive Introduction of Core Crawler Crane Components
What is a Crawler Crane? A crawler crane is a large lifting device mounted on a crawler undercarriage....
Blog
Contact
Looking for crane undercarriage parts manufacturers?
Contact us to get the best quote and information about the crawler crane parts you are interested in.
