Crawler Crane Kobelco 180 ton-CKE1800
Kobelco CKE1800: 180t crawler crane lifts 16.8t@22m w/96m boom. OEM undercarriage parts of Crawler Crane Kobelco 180 ton: track pads, rollers, sprockets. Request Quote！
Kobelco CKE1800 Crawler Crane
1. Performance Matrix
Configuration: Max. Boom Length Capacity Highlights Ground Pressure
Standard: 18.3m 180t @ 6m radius
Wind Power Setup: 96m + 42m jib 16.8t @ 22m radius 7.2 t/m²
Tower Duty: 132m 7.2t @ 40m radius
2. Power & Efficiency
Dual-mode Isuzu 6WG1X engine (297 kW)
ECO mode: 23% fuel reduction (verified 38 L/h)
HSLA80 steel lattice boom: 96m section weighs 42 tonnes
Transport optimization: No component >28t
3. Smart Control System
iGo operating support: Real-time calculation of 8,400 load scenarios
4G remote diagnostics: Monitors 32 hydraulic parameters
Automatic counterweight adjustment (±3° slope compensation)
Kobelco CKE1800 Undercarriage Parts Supplier
As a professional Kobelco CKE1800 crawler crane parts manufacturer, our factory provides OEM undercarriage parts of crawler crane Kobelco 180 ton, including：
Kobelco CKE1800 Track Roller
Kobelco CKE1800 Top Roller
Kobelco CKE1800 Idler
Kobelco CKE1800 Sprocket

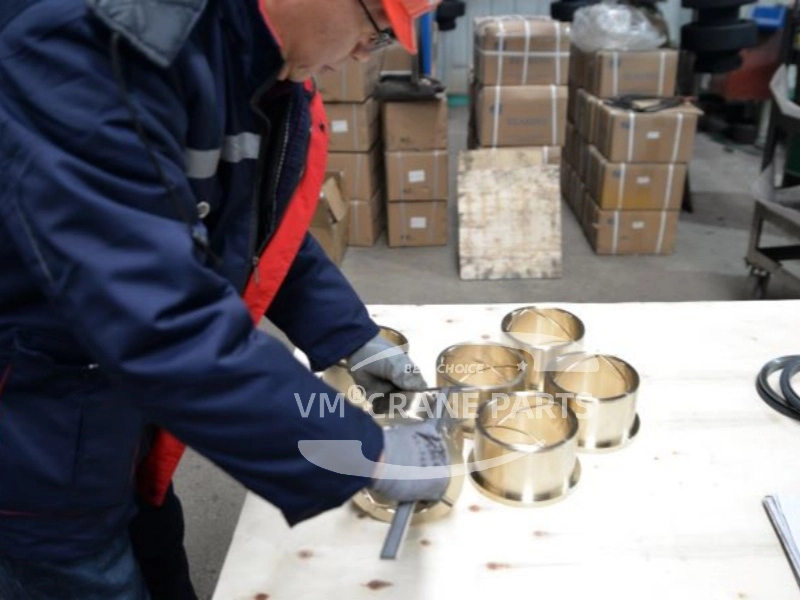

Why choose VM® Kobelco CKE1800 Undercarriage Parts?
Durability & Performance Data
Include lifespan metrics: “Our track rollers withstand 8,000+ operational hours in high-load conditions.”
Stress reduction stats: “Heat-treated sprockets reduce stress fractures by 40% vs. standard parts.”

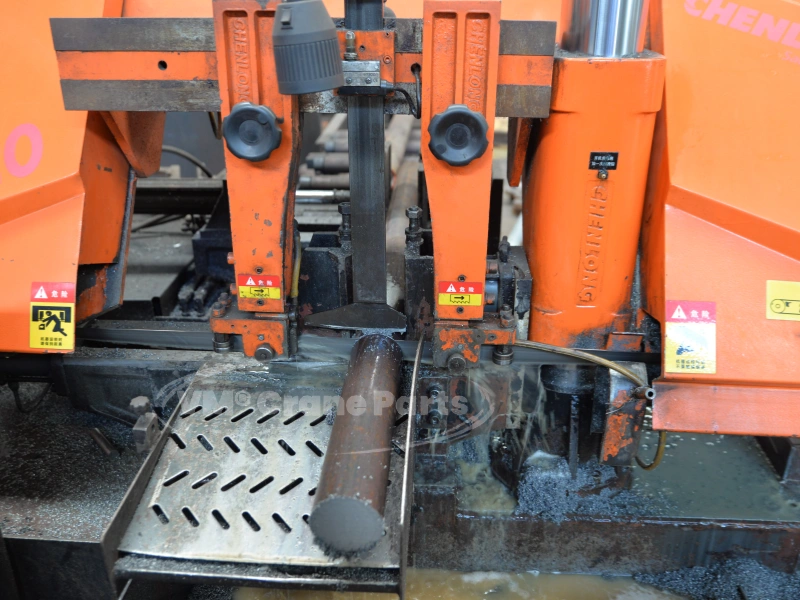

Precision Engineering
Track pads: Forged from 40Mn2 alloy steel, hardness ≥45 HRC”
Sprockets: CNC-machined to ±0.05mm tolerance for perfect track engagement.”
