Crawler Crane Sheave: The Key Component that Keeps Heavy Lifting Operations Safe and Efficient
In the heavily competitive and highly technical industry of heavy construction and industrial lifting operations, few parts are as important and at the same time neglected as the crawler crane sheave.
What is a Crawler Crane Sheave?

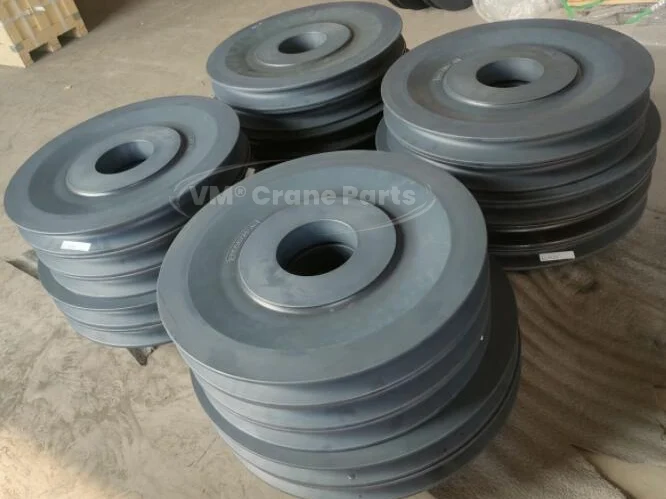

A crawler crane sheave is also called a crane pulley. It is defined as a wheel with a grooved rim that is intended to hold and guide the wire rope during the lifting process. Although the terms sheave and pulley are normally used interchangeably in common conversation, the engineering industry has made it clear that the terms are distinct. A pulley is defined as any wheel that is intended to hold and guide a cable or a belt. The sheave is specifically defined as the pulley that is intended to hold and guide the wire rope.
The sheave has two purposes. First, it changes the direction of the applied force. This is important because it allows the crane to lift the load vertically despite the horizontal position of the boom. Second, it offers a mechanical advantage. This is important because it allows the small hoists to lift loads that are several times heavier.
Engineering Specifications and Materials

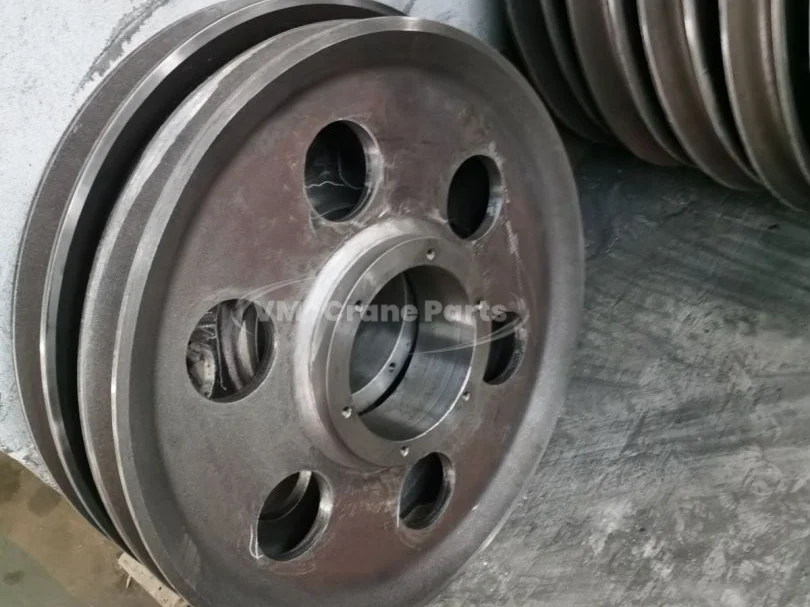

Manufacturers have developed several manufacturing techniques for producing sheaves, each with unique specifications depending on their application. Cast steel sheaves, for example, involve pouring liquid steel into molds. The manufactured sheaves have high weight-handling capacity, making them suitable for harsh environments. Forged sheaves, on the other hand, involve heating solid steel bars and then subjecting them to extremely high pressure. This manufacturing method produces sheaves with high strength, hardness, and durability—making them the preferred choice for demanding environments.
Materials used in manufacturing high-quality crawler crane sheaves include cast steel, carbon steel, and gray cast iron. The groove surface is also induction hardened up to 22 mm or more. This surface hardening significantly extends the lifespan of components since it shields them from wire rope abrasion. The presence of steel rope in contact with the sheave groove in harsh environments makes the components extremely durable.
Types of Pulleys
Classification by Function
Based on their function, pulley systems can be categorized into the following two types:
1. Force-Saving Pulley Systems
Widely utilized in the hoisting mechanisms of cranes and the luffing mechanisms of standard jibs.
Capable of lifting loads several times greater than the tensile force applied to the wire rope, using only a relatively small pulling force.
Achieve mechanical advantage—thereby enhancing lifting capacity—through the use of multiple wire rope reevings.
2. Speed-Increasing Pulley Systems
Primarily employed in hydraulically or pneumatically driven mechanisms.
Utilize hydraulic or pneumatic cylinders to generate a displacement distance that is several times greater than the piston’s speed or stroke length.
Typical Application: The boom telescoping mechanism found in wheeled cranes.
Classification according to structure
The structure of the pulley system can be used to classify the system in the following manner:
1. Single-Reeving Pulley Systems
Characteristics: This system is characterized by the fact that the wire rope branch entering the hoisting drum is composed of one strand.
This system is most commonly used in conjunction with multi-layer winding drums.
2. Double-Reeving Pulley Systems
Characteristics: This system is characterized by the fact that the branches of the wire rope entering the hoisting drum are composed of two strands.
This system is equipped with an equalizer pulley that balances the tension in the wire rope’s branches and can adjust the length of the wire rope.
This system is most commonly used in conjunction with single-layer winding, double-compartment drums.
Classification by Number of Pulleys
Based on the number of pulleys configured within a single pulley system, they can be classified as follows:
1. Single-Pulley Units
A standalone pulley unit, typically used for simple lifting operations.
Features a simple structure and is suitable for working conditions involving lighter loads or limited spatial constraints.
2. Multi-Pulley Systems
A single pulley block assembly containing multiple pulleys (typically ranging from 2 to 8).
Achieve multi-part wire rope reeving to provide greater mechanical advantage.
Significantly enhance both lifting capacity and system flexibility.
Application Example: A 5-pulley “fast-reeving” system, suitable for working conditions where frequent re-reeving or replacement of the pulley system is required.
Application Scenarios for Crawler Crane Sheaves
I. Wind Power Equipment Installation
The installation of wind power equipment is one of the most quintessential scenarios for the use of crawler crane sheaves. This is because, considering the placement of such equipment in remote areas, the sheave system is used to meet specific requirements in such environments, including:
Installation of wind turbine nacelles and towers
Installation of blades
Traversal through narrow access routes
II. Offshore Operations and Port Engineering
Considering the harsh environment of the marine industry, which demands specific requirements for equipment corrosion resistance, the use of sheave systems in such environments should comply with specific standards, including:
Operations with floating cranes
Corrosion-resistant treatment
Operations in docks and barges
III. Petrochemical and Heavy Industrial Project Construction
Industrial projects—such as oil refineries and chemical plants—involve the installation of vast quantities of heavy machinery, placing exceptionally high demands on the load-bearing capacity and reliability of the sheaves:
Lifting and installation of reactors and heat exchangers
Modular construction
Adaptability to high-temperature and harsh environments
