Crane undercarriage parts are the foundational components that ensure the stable operation, load-bearing capacity, and maneuverability of crawler cranes. These critical crawler crane components serve as the “feet” of the cranes, directly contacting the ground and withstanding immense pressure, friction, and external impacts in harsh working environments such as construction sites, mining areas, and utility maintenance projects.

What are the Crane Undercarriage Parts

The crawler crane undercarriage parts mainly include track shoes, track rollers, top rollers, idler wheels, drive sprockets, etc.

The track shoes primarily increase the ground contact area and support the crawler crane body; the track rollers can support the weight of the crawler crane and allow the tracks to move forward; the top rollers will support the tracks from above, this help maintaining a certain tension; the idler wheels guide the tracks to rotate correctly, preventing deviation and derailment; and the drive sprockets transmit power, connecting to the travel reducer and directly transferring power to the tracks, thus driving the entire undercarriage forward.

OEM Crane Undercarriage Parts Supplier

From the track shoes that provide traction to the drive sprockets that transmit power, each crane undercarriage part plays an indispensable role in maintaining the efficiency, safety, and service life of the crawler crane. As a professional crane parts manufacturer, Shandong Value Machinery Manufacture Co., Ltd. is committed to providing top-quality crane undercarriage parts that meet the highest industry standards. Our brands mainly include: Hitachi crane parts, Sumitomo crane parts, Hitachi Sumitomo crane parts, IHI crane parts, Manitowoc crane parts, Terex crane parts, Demag crane parts, Liebherr crane parts, American crane parts, Sany crane parts, Fuwa crane parts, Zoomlion crane parts, etc. The parts cover over 97% of the crawler cranes on the market.

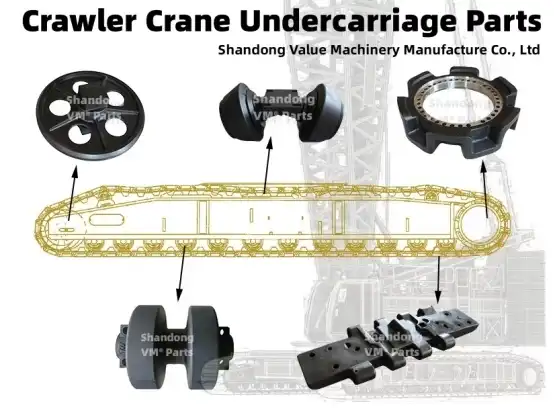

A Comprehensive Portfolio of Crawler Crane Components

Shandong Value Machinery offers an extensive range of undercarriage parts covering major global crawler cranes, with crane tonnage from 35 to 1600 tons. Our product lineup encompasses every critical component required for crawler crane undercarriage systems, making us a one-stop shop for parts for cranes:

Suitable Materials Ensure Crane Undercarriage Parts Performance

Selecting appropriate materials for crane undercarriage parts based on crane tonnage is critical for safety, compliance, and efficiency.

This targeted approach ensures compliance with ISO/ASME standards, extends part service life by 50–80%, optimizes total ownership costs, and boosts crane maneuverability and load capacity. As a leading crawler crane components supplier, Shandong Value Machinery prioritizes tonnage-material matching, delivering reliable, cost-effective parts that minimize downtime. Our tailored solutions meet global clients’ diverse needs, reinforcing safety and productivity across construction, mining, and offshore projects.

For example, track shoe material: Below 100 tons: Track shoes made of 35SiMn and 31Mn2Si offer a cost-effective balance of strength and wear resistance.

100-300 tons: 31Mn2SiMo and 28CrMnMo materials deliver enhanced tensile strength and fatigue resistance.

300-600 tons: 31Mn2SiMoNi provides ultra-high impact toughness and load-bearing capacity.

Above 600 tons: G22NiMoCr5-6 offers top-tier wear and corrosion resistance, tailored for ultra-heavy-duty cranes, ensuring stable, safe operation in the most demanding industrial scenarios.

Quality Control

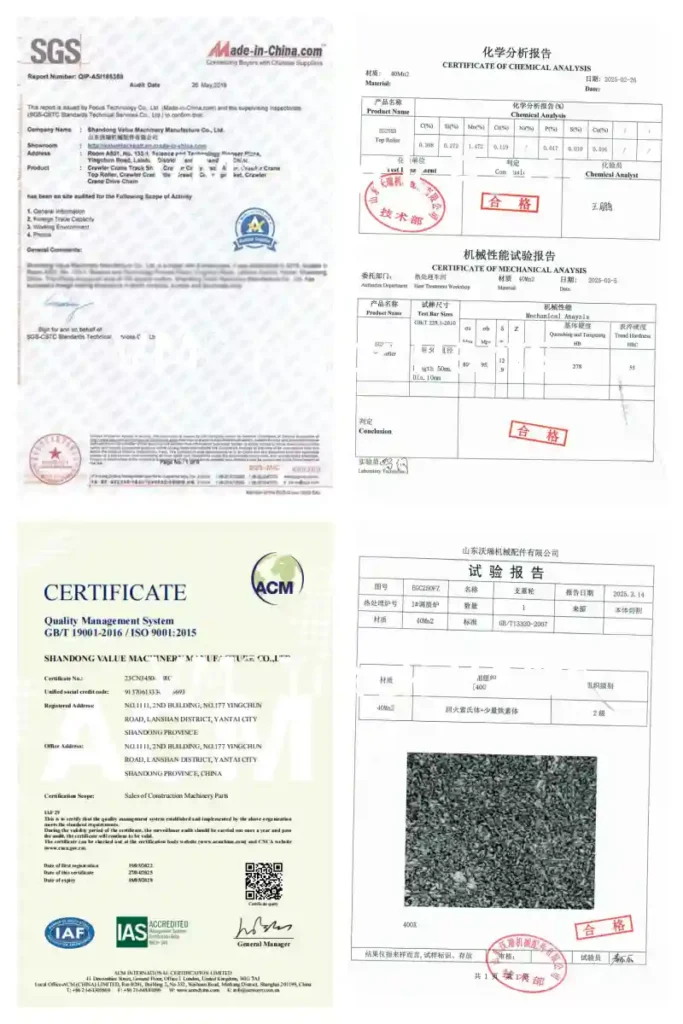

We adhere to strict ISO 9001 quality management standards, and every crane part undergoes rigorous processes to ensure reliability and durability. We have strict quality inspection procedures, including:

Ultrasonic testing: A non-destructive method that detects internal flaws (e.g., cracks, inclusions) in crane undercarriage parts by transmitting high-frequency sound waves, ensuring structural integrity without damaging components.

Magnetic particle testing: Identifies surface and near-surface defects (such as microcracks) in ferromagnetic materials (e.g., alloy steel track pads) by applying magnetic fields and iron particles, highlighting irregularities.

Tensile testing: Measures the tensile strength, yield strength, and ductility of materials (e.g., 31Mn2SiMoNi) by subjecting samples to controlled pulling forces, verifying their ability to withstand load stress.

Impact testing: Evaluates the toughness and resistance to sudden fracture of materials under dynamic loading (e.g., extreme impacts in mining sites), ensuring parts perform safely in harsh conditions.

Hardness testing: Quantifies a material’s resistance to indentation or abrasion (e.g., HRC for sprockets), reflecting its durability and suitability for specific tonnage-related wear demands.

Why Choose Shandong Value Machinery?

As a professional supplier of crawler crane undercarriage parts, advanced production lines and equipment are also essential. We have more than twenty undercarriage parts production workshops. The factory is equipped with more than fifty automated production machines, including horizontal lathes, milling machines, boring machines, and more.

Rich industry experience, so far, our crane parts have been sold to more than thirty regions worldwide. We have accumulated many customers who have cooperated with us for up to fifteen years.

We have an efficient logistics team that can customize logistics solutions according to customer needs.

If you have any inquiries about crawler crane undercarriage parts, please contact us freely. We will be the best choice for you.
