How to Transport a Crawler Crane
If you work in construction, wind energy, or heavy industrial projects, you know the question well: how do you move cranes when a job finishes and the next one begins? For crawler cranes specifically, this question becomes particularly complex.
Crawler cranes are massive machines that move on tracks like a bulldozer. While this design provides exceptional stability for lifting heavy loads, it creates significant challenges when how do you move cranes, which becomes the task at hand. Unlike truck-mounted cranes that can drive on highways, crawler cranes cannot travel on public roads—they move too slowly (typically under 5 km/h), and their steel tracks would cause extensive damage to pavement.
So, how are cranes moved when they use tracks instead of wheels? The answer involves disassembly, specialized heavy-haul equipment, meticulous planning, and compliance with complex regulations. This comprehensive guide explains everything you need to know about how to transport a crane of the crawler variety.
Method 1: Traditional Disassembly and Trailer Transport
The conventional answer to how to transport a crane is to disassemble it into multiple modules, each loaded onto specialized trailers.
Step 1: Disassembly into Transportable Modules
How are cranes moved from a completed job site? The process begins with systematic disassembly:

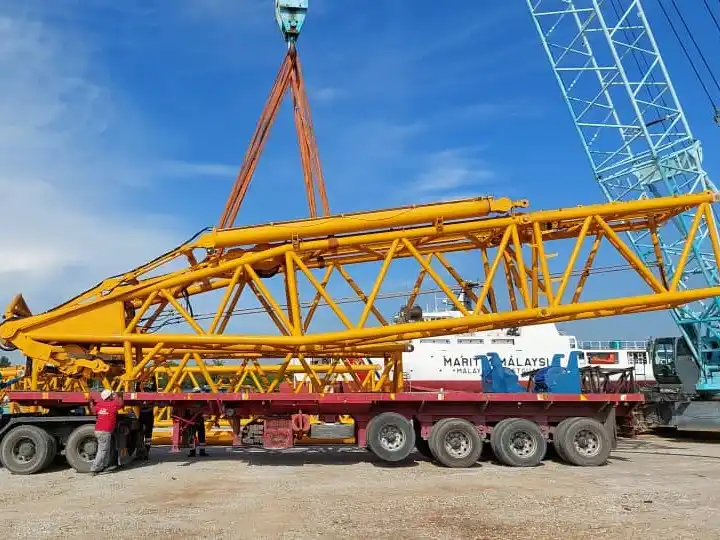

Boom sections are removed and typically transported on extendable flatbed trailers
Counterweights come off as individual blocks, each requiring its own trailer
Crawler tracks are detached from the chassis

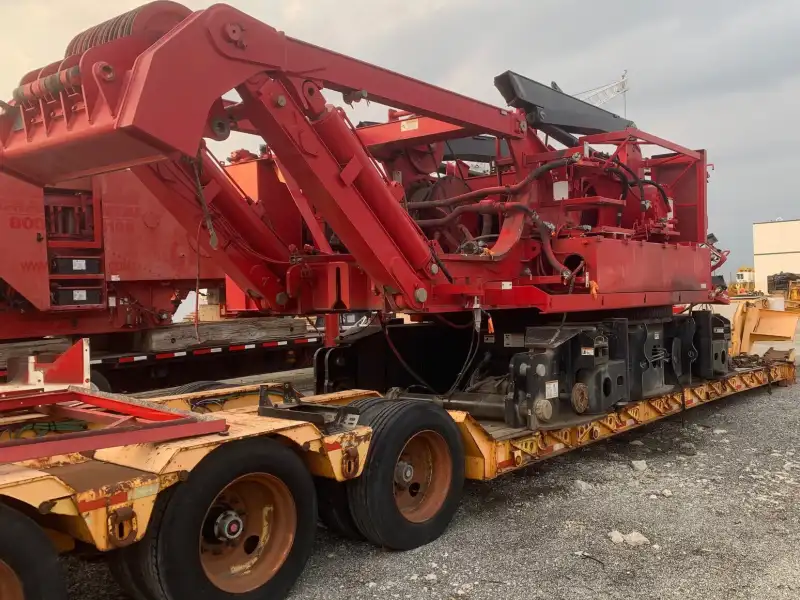

The upper carriage (containing the cab, engine, and winches) becomes one of the heaviest individual loads
Some manufacturers have developed space-saving innovations. Liebherr’s LR 1800-1.0 features a “Russian doll” design where boom sections nest inside each other—96 meters of main boom and 96 meters of luffing jib can be transported with five fewer trucks than conventional designs.
Step 2: Loading onto Specialized Trailers
Once disassembled, the question of how to move cranes shifts to equipment selection:
| Trailer Type | Best For | Key Feature |
| Lowboy trailers | Heavy components like the upper carriage | Low deck height for stability |
| RGN (Removable Gooseneck) | Medium crawler crane components | Tiltable platform for easy loading/unloading |
| Extendable flatbeds | Boom sections | Adjustable length for long components |
| Multi-axle platform trailers | Extremely heavy loads | Distributes weight across many axles |

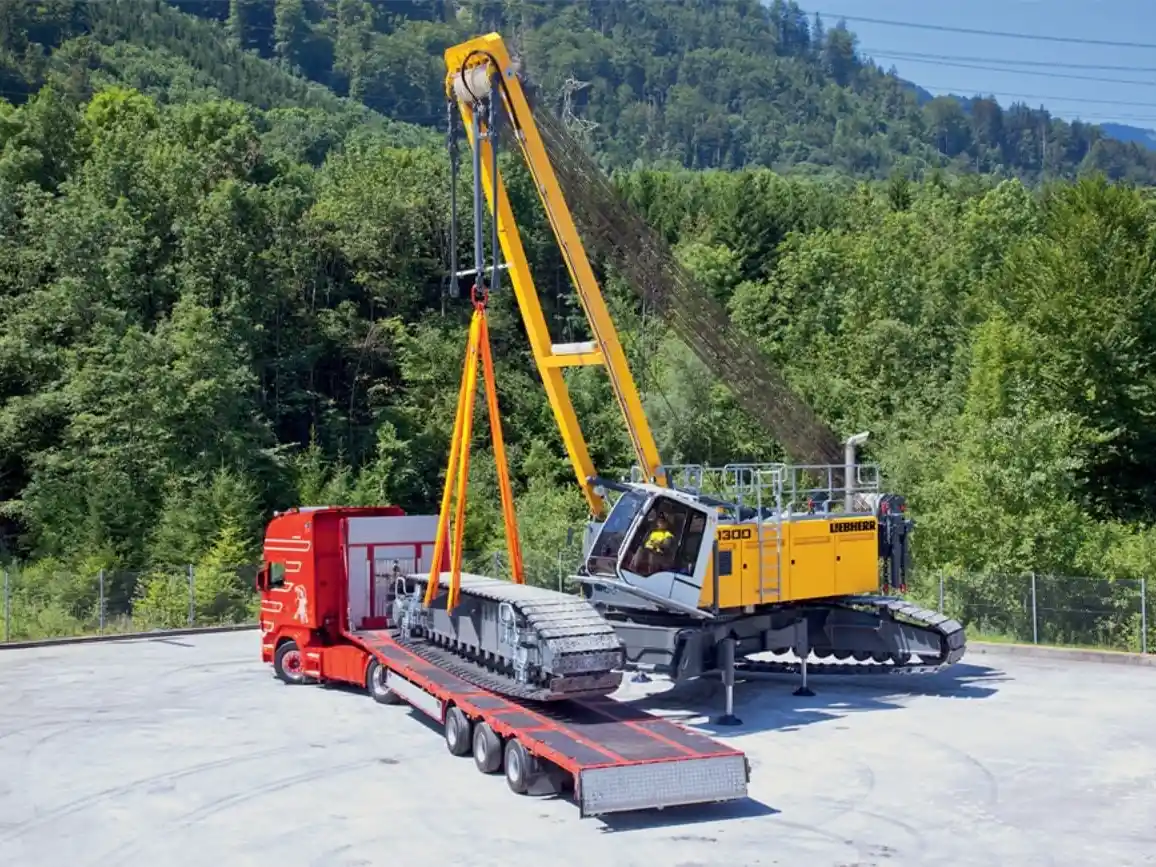

RGN trailers are particularly valuable for crawler crane transport because the removable gooseneck allows components to be driven or winched directly onto the trailer deck.
Step 3: Securement and Inspection
Proper load securement is essential when the goal is to transport a crane safely. Heavy-duty chains, binders, and straps must meet DOT specifications. Each component requires multiple tie-down points, and securement must be inspected before departure and periodically during transit.
Method 2: Innovative SPMT Transport (Disassembly-Free)
Recent innovations have created an alternative answer to how cranes are moved for certain applications. Self-Propelled Modular Transporters (SPMT) enable disassembly-free transport of crawler cranes.
The SPMT Transport Process
This innovative method, protected by patent CN109911639B, answers how to transport a crane without taking it apart:
- Prepare the site: Place a roadbed platform and roadbed trestle at the current location
- Position the crane: Drive the crawler crane onto the roadbed platform using the trestle
- Prepare the SPMT: Place load-sharing cushion blocks on the self-propelled modular transporter
- Position the SPMT: Drive the modular transporter beneath the crawler crane
- Lift and carry: The SPMT hydraulically lifts the crane, separating it from the roadbed platform
- Transport: The SPMT carries the complete crane to the new site
- Repeat at destination: Place another roadbed platform at the new location
- Set down: Lower the crane onto the new platform
- Drive off: The crawler crane drives off under its own power
Benefits of SPMT Transport
- No disassembly required – saves days of labor
- No auxiliary crane needed – eliminates rental costs
- Dramatically reduced transition time – from days to hours
- Lower overall transition cost – despite specialized equipment expense
This method is particularly valuable for crawler cranes working on projects requiring frequent relocation, such as wind farm construction or large infrastructure projects with multiple sites.
Permits and Regulatory Compliance
Oversize/Overweight Permit Requirements
Permits are non-negotiable. Standard vehicle dimension limits in most jurisdictions are:
- Width: 2.5 meters (8.5 feet)
- Height: 3.8 meters (12.5 feet)
- Length: 12.0 meters (40 feet)
- Weight: 20 tons
Crawler crane components almost always exceed these limits, requiring oversize/overweight permits for every jurisdiction crossed.
Escort Vehicle Requirements
Most crawler crane transports require pilot cars (escort vehicles). The number depends on load dimensions:
- Wide loads typically need front and rear escorts
- Extremely wide or long loads may require police escorts
- Escort drivers must have proper certifications
Route Planning and Survey
Pre-Transport Route Assessment
Before answering how to transport a crane on a specific route, thorough planning is essential:
Height and width clearance assessment: Survey the entire route for:
- Bridge clearances
- Power lines and utility crossings
- Overpasses and tunnels
- Traffic signals and street lights
- Tree canopies
Bridge and road weight restrictions: Verify that all bridges and roads can support the axle weights of your transport configuration.
Alternative route planning: When primary routes have restrictions, develop backup options that bypass low bridges, avoid weight-restricted roads, and accommodate turning radius requirements.
Using Technology for Route Optimization
Modern transport companies use GPS and specialized routing software that considers:
- Live traffic conditions
- Bridge height data
- Weight-restricted roads
- Turn radius requirements at intersections
Safety Considerations
Load Securement Best Practices
When how cranes are moved is answered with “by trailer,” proper securement is critical:
- Use Grade 100 alloy chains with proper working load limits
- Apply proper tension with binders (not over-tightened)
- Inspect securement at regular intervals during transport
- Use edge protection where chains contact sharp corners
Weather Considerations
How do you transport a crane safely in adverse conditions?
- High winds can destabilize tall loads
- Rain reduces traction and increases stopping distances
- Plan around severe weather forecasts
- Pull over and wait when conditions deteriorate
Frequently Asked Questions
Q: Can a crawler crane drive itself to the next job site?
A: No. Crawler cranes cannot travel on public roads—they move too slowly, and their tracks would damage pavement. For short distances within a job site, they can self-propel, but any road travel requires transport on trailers.
Q: How long does it take to disassemble a crawler crane for transport?
A: This varies by crane size and complexity. Traditional disassembly can take 2-3 days with an auxiliary crane. Cranes with self-assembly systems can be ready for transport much faster.
Q: How many trucks does it take to move a crawler crane?
A: A typical 300-ton crawler crane requires 8-12 trucks for all components: the upper carriage, two crawler track frames, 3-5 truckloads of boom sections, and 2-3 truckloads of counterweights.
Q: What permits are needed to transport a crawler crane?
A: Oversized/overweight permits are required from every state or jurisdiction crossed. The specific permits depend on the dimensions and weight of each load.
Q: What is SPMT transport, and when should I use it?
A: SPMT (Self-Propelled Modular Transporter) transport involves carrying the complete assembled crane on a specialized multi-wheel platform. It’s ideal for short-distance relocations (under 10-20 km) and for projects requiring frequent moves.
Conclusion
How are cranes moved from site to site? It’s a complex logistical operation that transforms massive construction equipment into transportable modules, moves them across public roads, and reassembles them ready for work.
By understanding the process and working with experienced professionals, you can ensure your crawler crane arrives safely, on time, and ready to lift.
