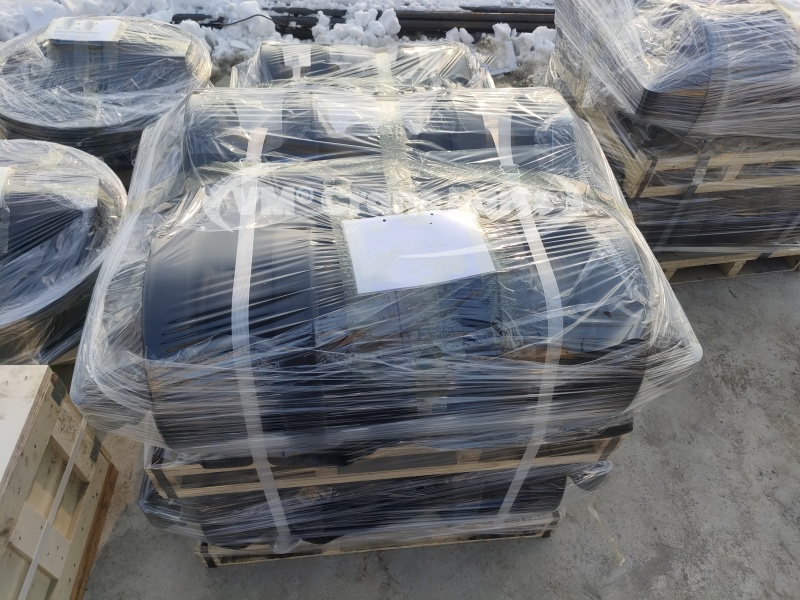

IHI CCH550 Two Sets Crane Undercarriage Parts Delivery
This month we has sent IHI CCH550 two sets undercarriage parts to Indonesia. This client has buy more than 10times these parts from us. And IHI CCH550 crane undercarriage part is a very hot model in Indonesia.
The detail information for IHI CCH550 crane undercarriage parts
1.Quantity
Description | Model | Part No. | Quantity(PCS) |

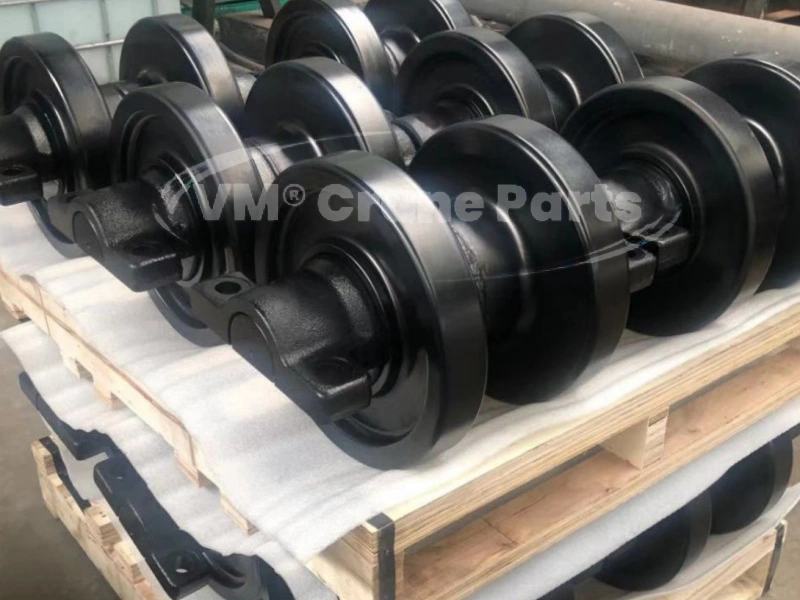

Roller-assy Lower | IHI CCH550 | 0653704UA | 56 |

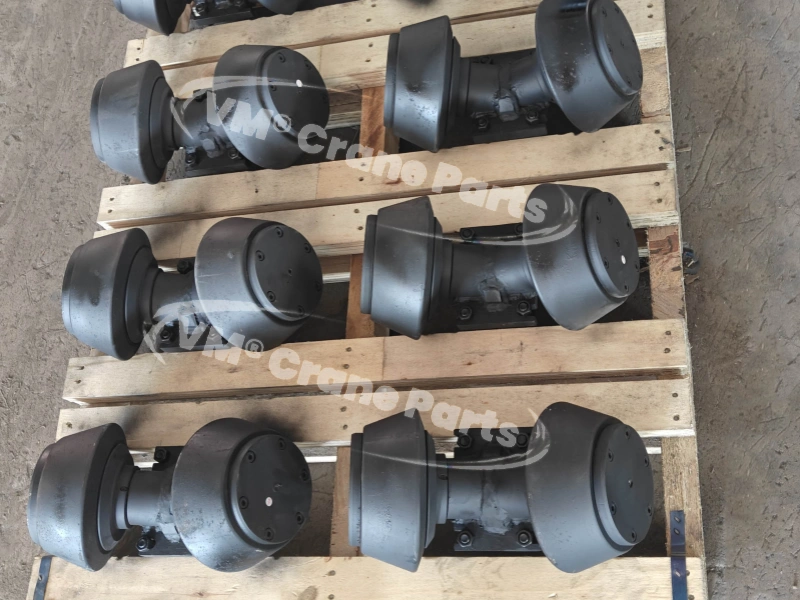

Upper roller |
| 0653996UA | 12 |
Front Idler assy |
| 530102700 | 3 |
Tumbler Drive |
| 423656600 | 4 |
Track shoe assy |
| 425851200-L | 4 |
Total |
|
| 79 |
2.Custom Solutions: Pre-Installed Bolts & Nuts for Indonesia Shipments
Because of Indonesia custom strictcontrol with HS code begin with 73, such as bolt&nut, so we help client install bolt&nut on the parts, pls kindly check the below photos:
1)Roller-assy Lower need 224pcs of bolt=M24*90,224pcs of nut=M24,224pcs of washer=M24
2) Upper roller need 48 pcs of bolt =M12*30, 48 pcs of nut =M12, 48 pcs of flat washer =M12
3) Front Idler assy need 12 pcs of bolt =M16*90,
4) Tumbler Drive need 120 pcs of hex bolt =M20*120, 120 pcs of nut =M20, 12 pcs of hex wire =M20*50
5) One Track shoe assy need =59 plates +59 pins +118 sets of bolt and nut gasket through the plate to form track plate, bolt =M16*55, nut =M16, spring gasket=M16
3. Weight

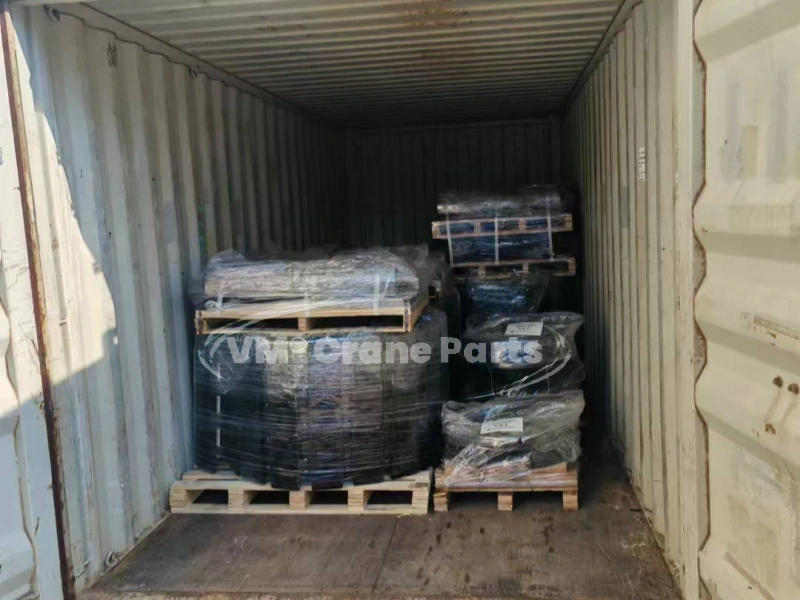

IHI CCH550 crane undercarriage part，the total gross weight is 15024.00KGS, suit for one of 20’GP container, please kindly check the Container loading photo.
4. Warranty
Warranty period of IHI CCH550 two sets undercarriage parts is 2500 working hours.
IHI crane undercarriage parts-Hot Seal crane model
Beside，IHI CCH550 crane undercarriage parts hot model in Indonesia, our Indonesia client will also buy CCH500-3 II/ CCH500 /CCH700/CCH2000/CCH2500/ CCH2800.
Common Causes of IHI CCH550 crane undercarriage parts Track Derailment and Solutions
Sometimes, our client will face to track derailment, but they can be basically classified into the following two categories, and we also provide suggestion.
- Because the four wheels are not in the same plane, the track is derailed
The reason for the problem is mostly at the guide wheel, because only the guide wheel among the four wheels (guide wheel, roller, drive wheel and carrier sprocket) can move back and forth. The wear of the moving part and the central shaft of the guide wheel will cause the guide wheel to swing left and right, causing the track to deviate from the track. This means that the excavator needs to replace the idler.
- Because the track is too loose, the track deviates from the track
The tightness of the track is adjusted by the guide wheel pushed by the tension oil cylinder. The tension oil cylinder is pushed by the butter gun to adjust the tightness of the track, but in many cases, the tightness of the track cannot be adjusted.
