Description
High Quality Demag 10786912 Track Roller for Demag CC1500 Track Roller and Demag CC2000-1 Crane. Including Demag 10818012 Roller and Demag 10787412 Axle for Crawler Track Roller.
Demag CC1500 Track Roller Information
| Model NO. | Demag CC1500 and CC2000-1 |
| P/N | 17914512 |
| Certification | SGS |
| Condition | New |
| Colour | Black |
| Warranty Time | 2500 Working Hours or One Year |
| Transport Package | Plywood Pallet |
| Origin | China |

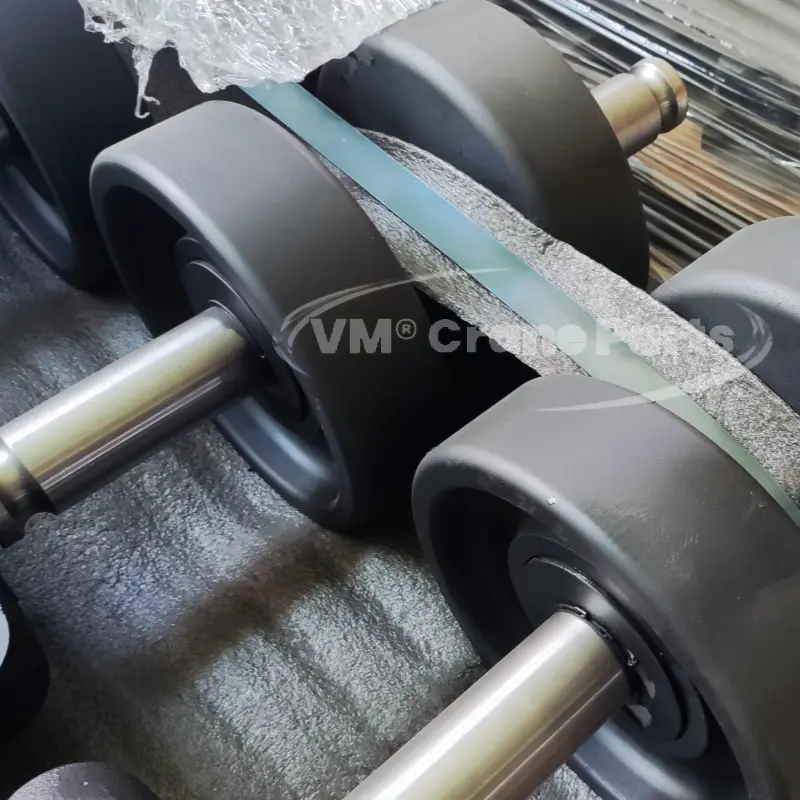

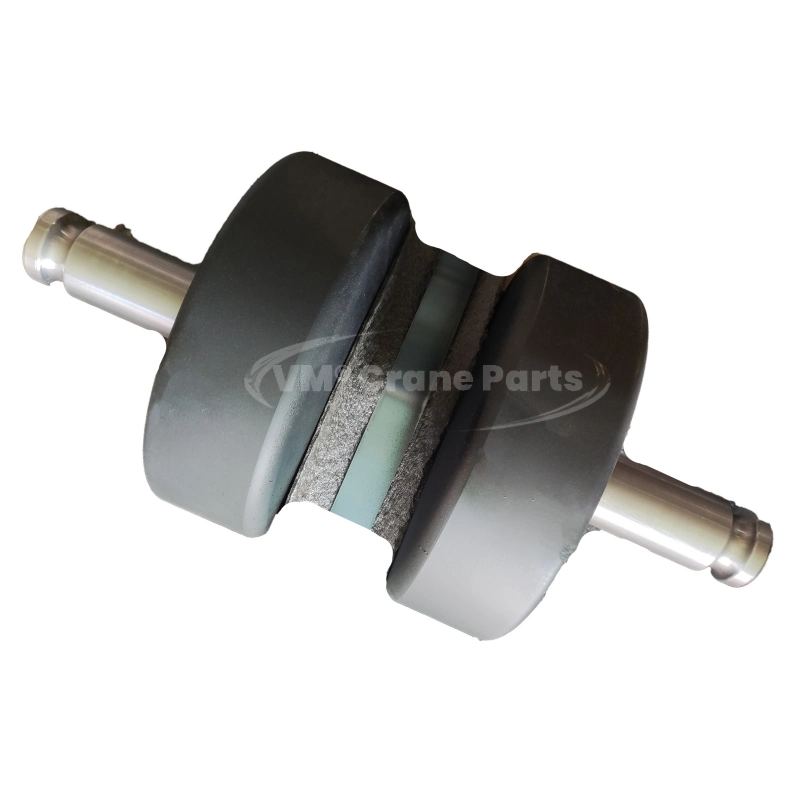

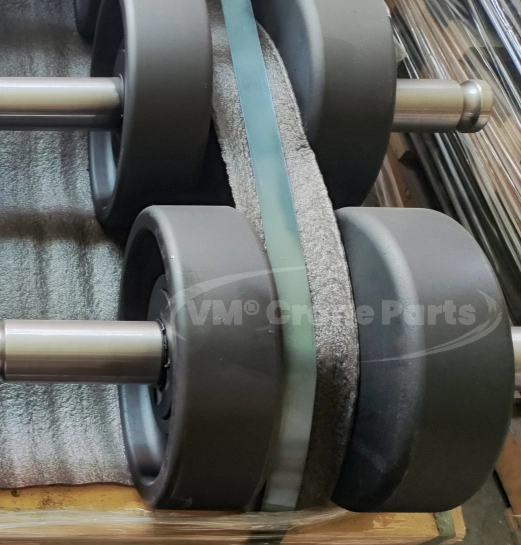

High-Quality Demag 17914512 Track Roller
- Pure copper alloy copper sleeve – wear-resistant and high temperature resistant
Friction coefficient reduced by 40%: Self-lubricating properties reduce the risk of dry friction and avoid high temperature “melting and sticking” accidents
Heat conduction enhancement: Rapidly remove bearing friction heat, and withstand continuous working temperature of +150℃
- Full round steel forged wheel body – impact-resistant structure
Process: Special round steel forged in one piece under 10,000-ton pressure
Surface strengthening: Wheel rim double-frequency quenching layer depth 8-10mm, surface hardness HRC58-62
- Full process quality control inspection
Inspection stage Key items Implementation standards
Raw materials entering the factory, Spectral analysis (copper alloy composition), ASTM E1251
After forging, Ultrasonic flaw detection (internal defects) EN 10228-3
Rough machining, Magnetic particle flaw detection (surface cracks), ISO 4987
After heat treatment, Metallographic structure inspection (martensite ratio), DIN EN ISO 643
Precision machining Dimensional tolerance (±0.03mm) DIN 2768-1
Sealing test 3Bar water pressure (30 minutes) IP69K

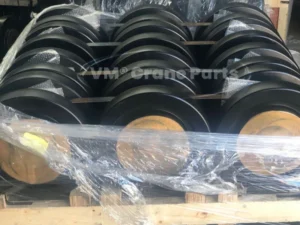

Delivery of Demag CC1500 Track Roller
