Description
Hitachi KH500 crane idler tracks rotate correctly, preventing deviation and derailment during crane operation and movement.
Key Specifications:
P/N:9030505

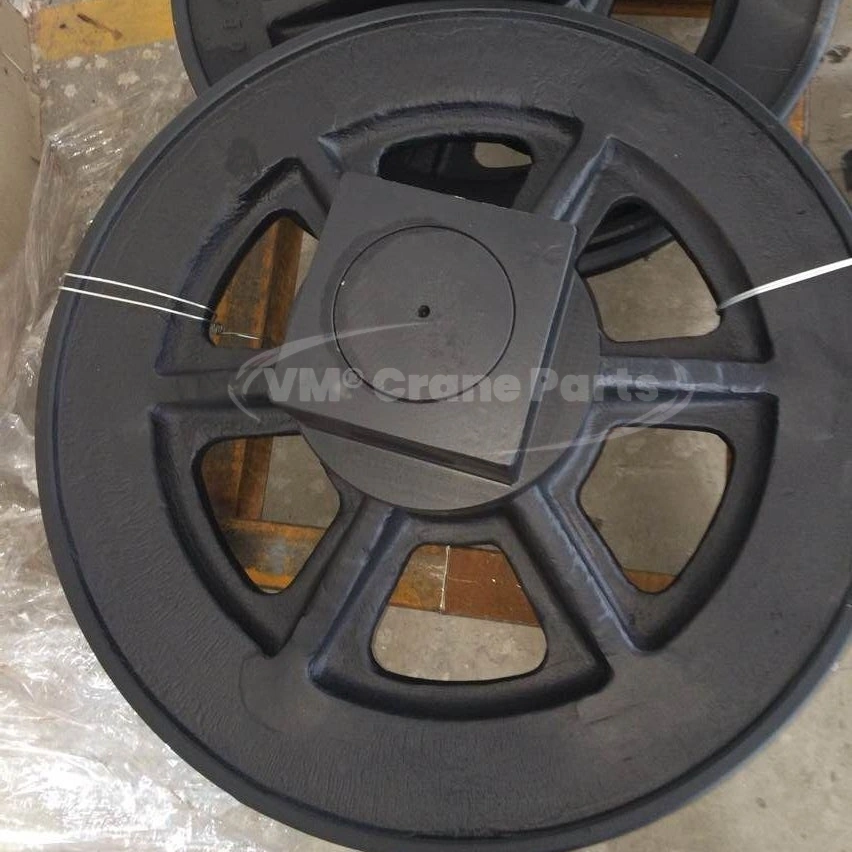

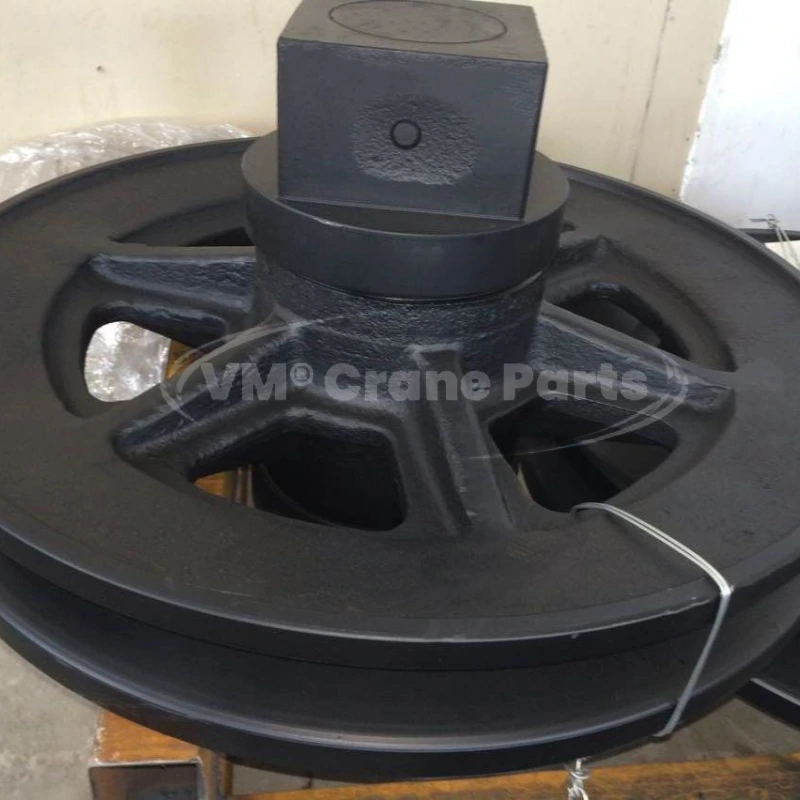

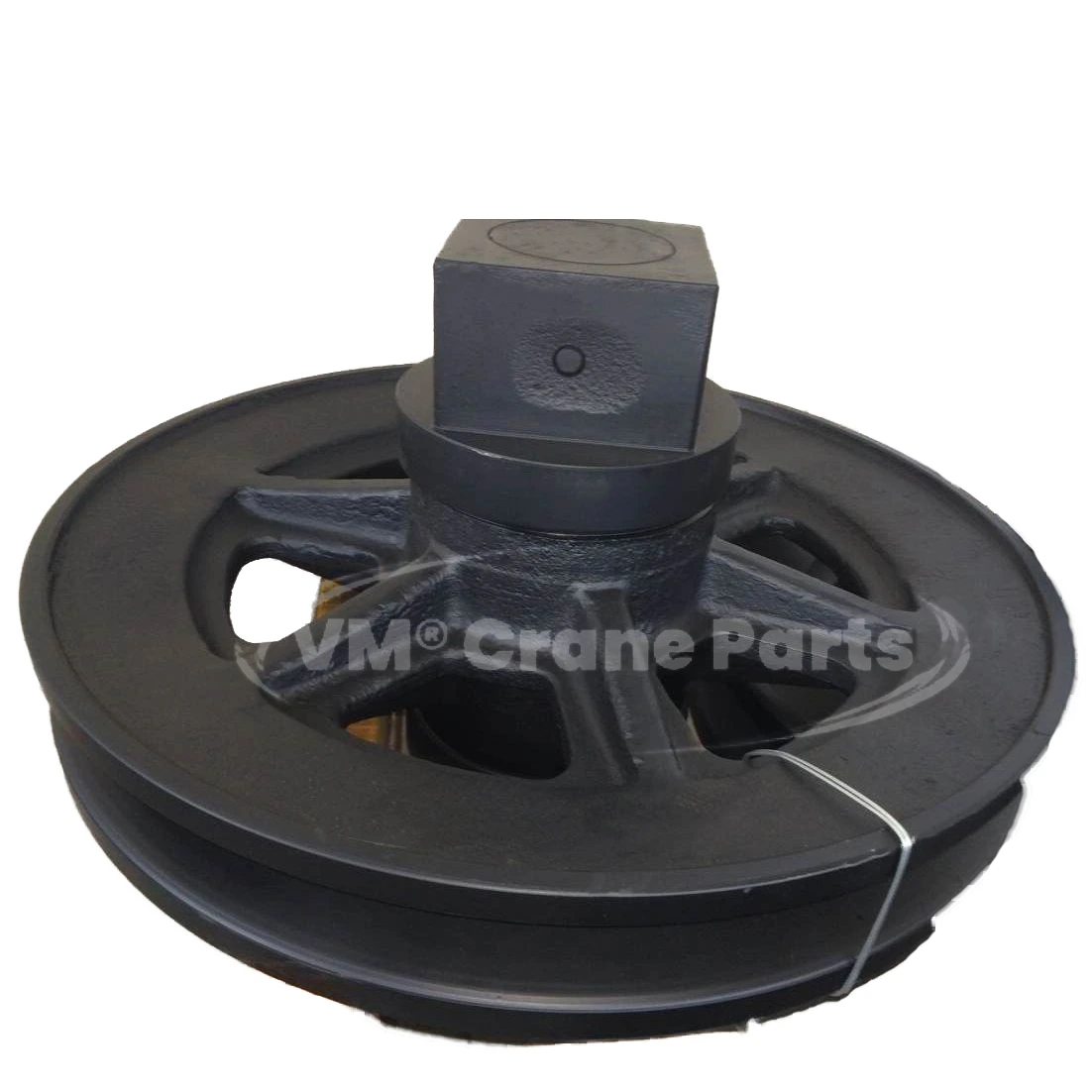

Name: Hitachi KH500 Front Idler, Idler Wheel, Front Tumbler.
Material: Primarily 35SiMn alloy steel
Manufacturing Process: Casting
Position: Front of the crawler frame
Assembly Components: Idler assembly + shock-absorbing spring

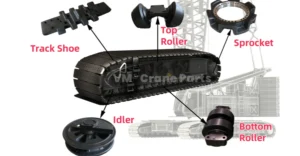

Hitachi KH500 Crane Idler Working Principle:
Positioned at the front of the crawler frame, this idler/tumbler assembly incorporates a spring mechanism. During crane operation and travel:
The idler guides the track path. The spring absorbs impacts from ground irregularities (e.g., potholes).
This dual action reduces component wear and tear, prevents abnormal track shoe (pad) wear, and ensures stable track alignment.
Compatible Hitachi Crawler Crane Models:
Hitachi KH70, Hitachi KH100, Hitachi KH100-1, Hitachi KH100D, Hitachi KH125, Hitachi KH125-2, Hitachi KH125-3, Hitachi KH150, Hitachi KH150-2, Hitachi KH150-3, Hitachi KH180, Hitachi KH180-2, Hitachi KH180-3, Hitachi KH230, Hitachi KH230-3, Hitachi KH250HD, Hitachi KH250-3, Hitachi KH300, Hitachi KH300-2, Hitachi KH300-3, Hitachi KH500-2, Hitachi KH500-3, Hitachi KH700, Hitachi KH700-1, Hitachi KH700-2,Hitachi KH850-3, Hitachi KH1000, Hitachi U106A, Hitachi TH55, Hitachi TH55ED,Hitachi CX300, Hitachi CX350, Hitachi CX400, Hitachi CX500,Hitachi CX500-2, Hitachi CX550, Hitachi CX650, Hitachi CX700, Hitachi CX900, Hitachi CX900HD, Hitachi CX1000, Hitachi CX1100, Hitachi PD7,Hitachi PD60FL, Hitachi PD80, Hitachi PD90, Hitachi PD100, Hitachi HE6010B etc.
Related Components Available:
We also supply compatible Hitachi KH500 crane undercarriage parts:
Track Pads (Shoes)
Track Rollers (Bottom Rollers)
Top Rollers (Carrier Rollers)
Drive Sprockets
Our Commitment:
We provide OEM-quality components and tailored solutions for optimal crane performance and longevity.
Questions about the KH500 Idler Wheel or other parts?
Contact us for expert advice and information!
