Track Roller vs Carrier Roller: Understanding the Key Differences and Applications
In heavy machinery, especially in industries like construction, mining, and crane operations, track rollers and carrier rollers play crucial roles in maintaining the functionality and longevity of undercarriage systems. These components are integral to crawler cranes, bulldozers, excavators, and other tracked machines. Though they are both called “rollers,” they serve distinct purposes. Understanding their differences can help you make informed decisions when selecting or replacing parts for your equipment.
In this article, we’ll explore the key differences between track rollers and carrier rollers, their application, and how they affect the overall performance of tracked machinery.
Key Differences Between Track Rollers and Carrier Rollers
1. Location and Function of Track Rollers and Carrier Rollers
Both track rollers and carrier rollers are essential to the smooth operation of the crawler undercarriage. However, their roles and positioning differ significantly:

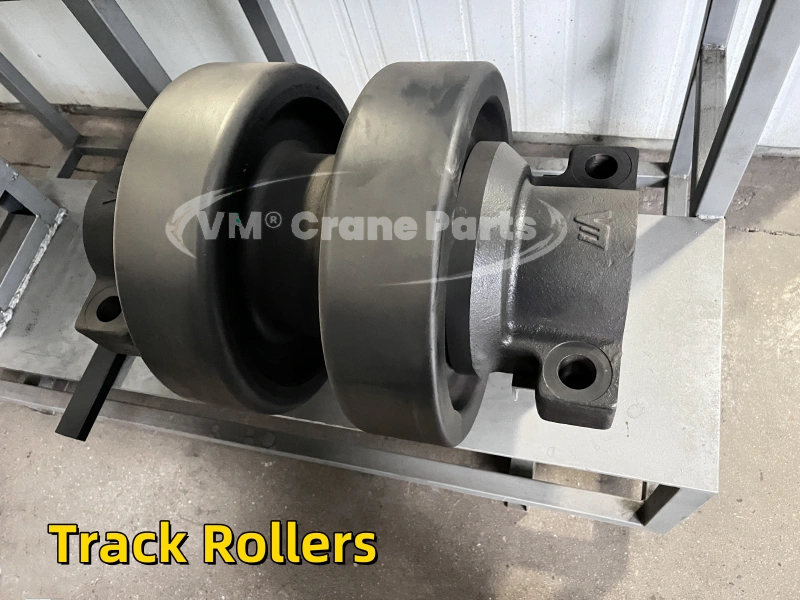

- Track Rollers: Located along the underside of the crawler tracks, track rollers, often referred to as bottom rollers or lower rollers, support the weight of the crawler cranes and help provide traction on various surfaces. These rollers absorb the majority of the forces as the machine moves over rough or uneven ground.
- Carrier Rollers: Positioned at the top of the track, the carrier rollers are also called top rollers, holding up the track shoes and maintaining track tension and alignment. Their main function is to guide the track in a straight line, reducing the risk of deviation or misalignment and avoiding premature wear.
2. Structural and Material Differences
The steel track rollers are usually larger and stronger, and the material usually is 40Mn2 or 42CrMo, which gives them better load-bearing capacity and wear resistance.
Carrier rollers are smaller and lighter. They support the track movement but do not bear the full weight of the machine. Some manufacturers use 50Mn, but we still use 40Mn2 to ensure its superior performance.
3. Impact on Performance:
- Track rollers directly influence the machine’s stability and traction, particularly on rugged or uneven terrain.
- Carrier rollers contribute to the durability of the undercarriage, helping to reduce friction and extend the lifespan of the tracks.

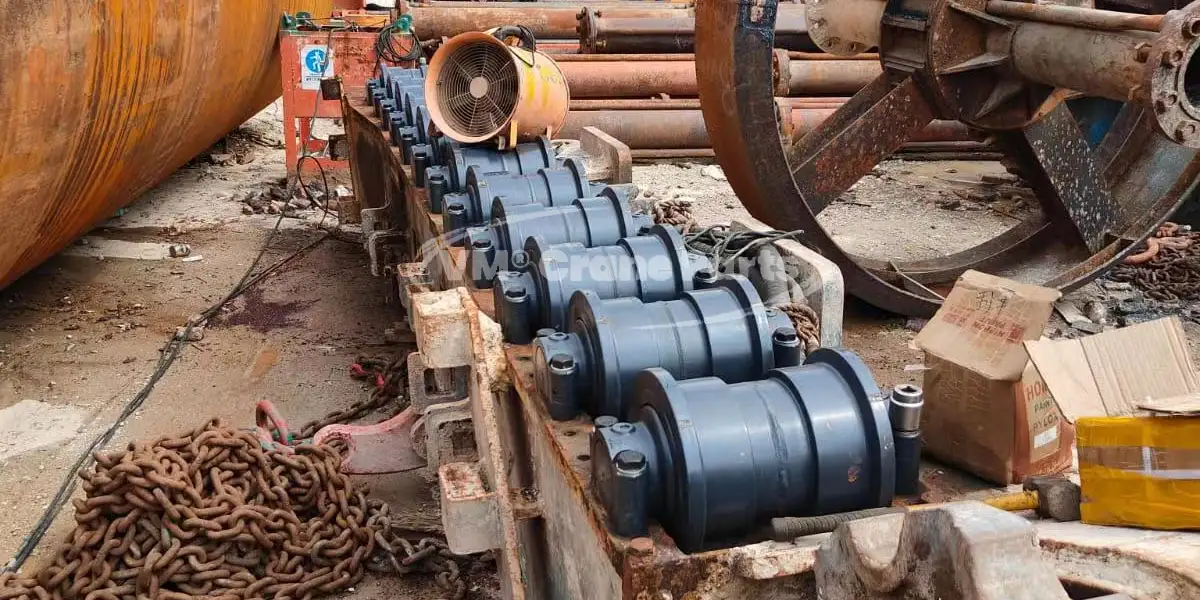

Key Factors to Consider When Choosing Track Rollers and Carrier Rollers
Durability
Compatibility
Maintenance
When replacing or upgrading rollers on your machinery, it’s essential to consider factors such as material quality, machine load capacity, and environmental conditions. Here are some tips to help you make the best choice:
- Durability: For machines operating in tough, rugged conditions (such as construction or mining), heavy-duty track rollers are made of high-quality round steel, and the steel track rollers need to be fully heat-treated to ensure good mechanical properties. This is a key factor in determining the roller’s durability, load-bearing capacity, and wear resistance.
- Compatibility: Ensure the installation dimensions of the track rollers and carrier rollers, as well as the coordination with other track parts. If the dimensions do not completely match other crawler undercarriage parts, even if they can be used, it may cause excessive wear.
- Maintenance: Consider the ease of maintenance. Regular inspections of roller for tracks and other undercarriage components can help identify wear early and prevent costly downtime.

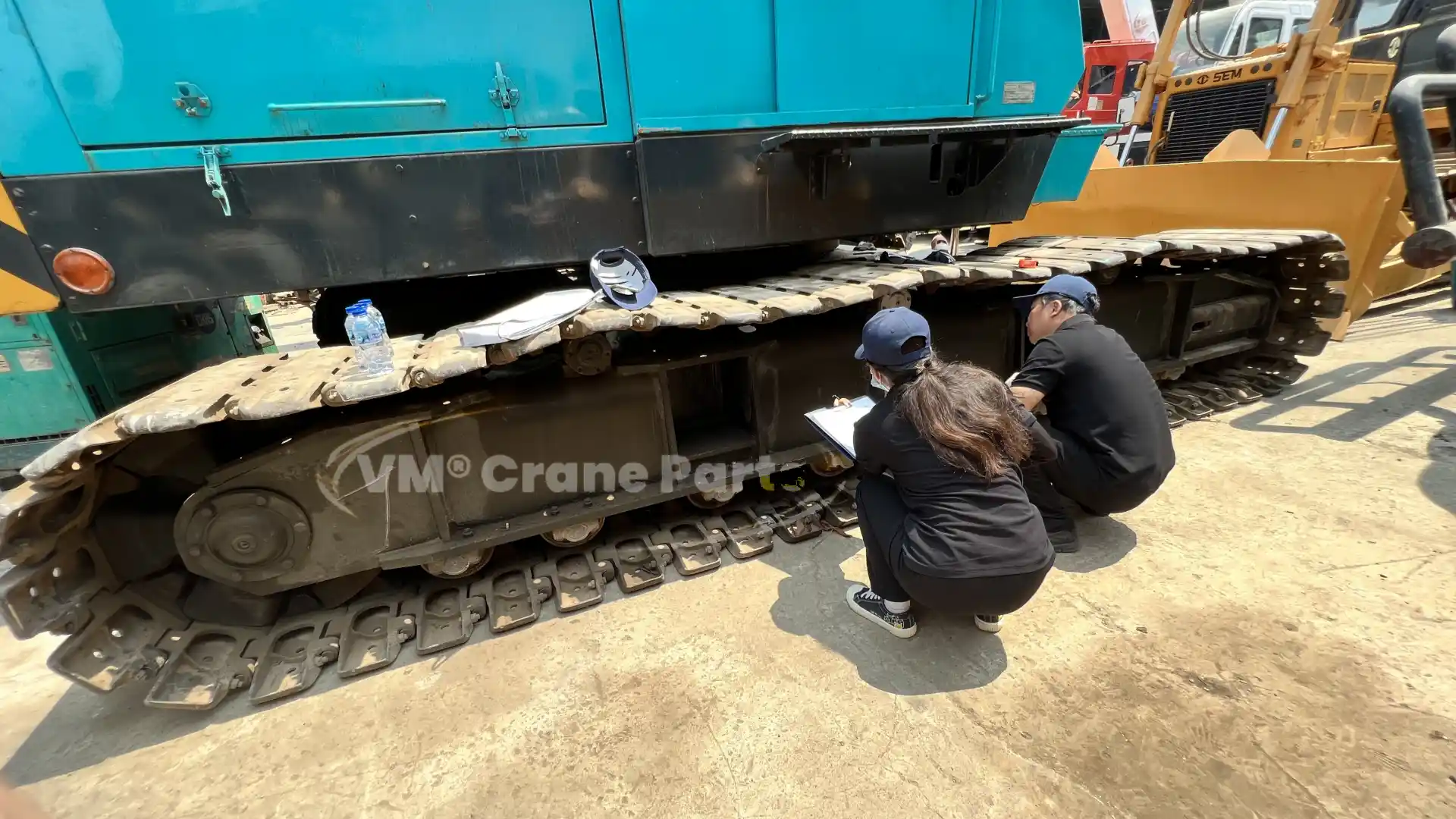

The Importance of Proper Track Roller and Carrier Roller Maintenance
Both track rollers and carrier rollers require regular maintenance to function at their best. Here are some maintenance tips for extending the life of your rollers:
- Lubrication: Keep the rollers well-lubricated to minimize friction and prevent premature wear.
- Regular Inspections: Inspect the rollers for signs of damage, such as cracks, wear, or misalignment. Replace any worn parts promptly to avoid further damage to the undercarriage.
- Track Tension: Check the tension of the tracks regularly. Too much slack can cause the track to misalign, affecting both the track rollers and carrier rollers.
Regular maintenance and inspection of the crane rollers are crucial to avoid unnecessary wear and tear. Monitoring the condition of both track and carrier rollers ensures that the crawler crane remains efficient, reducing downtime and maintenance costs.
Conclusion: Understanding Track Rollers and Carrier Rollers for Maximum Efficiency
Understanding the differences and functions of track rollers and carrier rollers is important for anyone who operates or maintains crawler cranes and tracked machinery. Both rollers play complementary roles in ensuring smooth operation, and their proper maintenance can extend the service life of the undercarriage, reduce costs, and enhance machine performance.
When selecting parts for your crawler cranes, it’s important to consider the material, application, and maintenance requirements. Heat-treated track rollers are an excellent choice for heavy-duty applications due to their durability and load-bearing capacity.
For more information on selecting the right track roller or carrier roller, or to get a quote for replacement crane rollers, contact us today. Our experts are ready to help you choose the best crawler crane parts.
