Crawler Crane 150 Ton: Sany SCC1500A and Kobelco 7150
150-ton crawler crane specs: SANY SCC1500A vs Kobelco 7150. OEM crane undercarriage parts with fast shipping & 2,500hr warranty. Shop now.

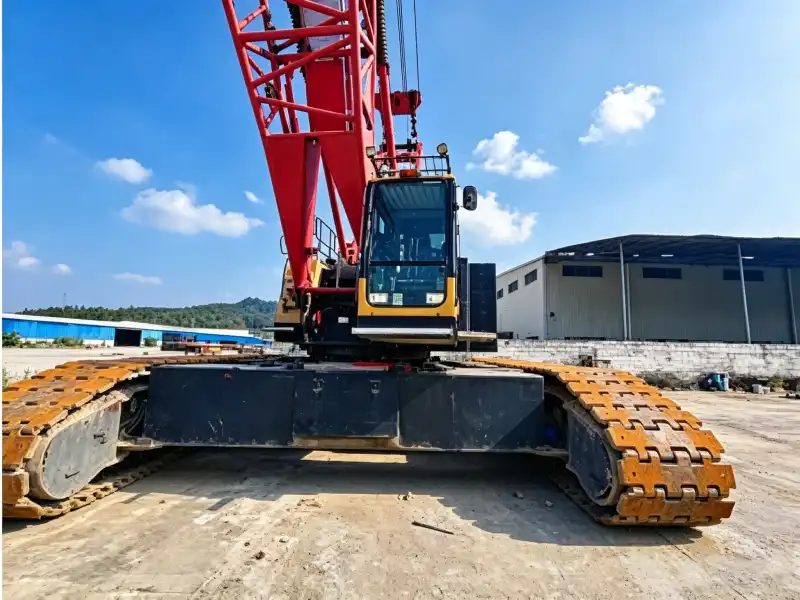

Crawler Crane 150 Ton-SANY SCC1500A Series
SCC1500A-5 Key Specifications:
Max. Lifting Capacity: 150 tons
Max. Main Boom Length: 76 meters
Max. Lifting Moment: 852 ton-meters
Engine: Cummins QSL8.9; Power: 242 kW / 2100 rpm
Fixed Jib: Max. length 31 meters
Main Boom + Fixed Jib Combination: 64 + 31 meters
SCC1500A-8 Key Specifications (Newer Model):
Max. Lifting Capacity: 150 tons
Max. Main Boom Length: 76 meters
Max. Lifting Moment: 882 ton-meters (approx. 3.5% increase over the A-5)
Fixed Jib Length: 13 – 31 meters
Luffing Jib Length: 22 – 52 meters
Combined Configuration: Main boom 64m + Fixed jib 31m; or Main boom 52m + Luffing jib 52m

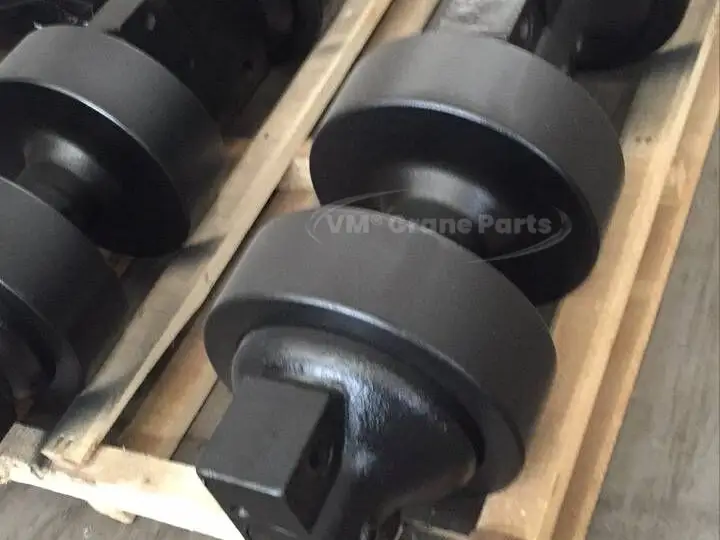

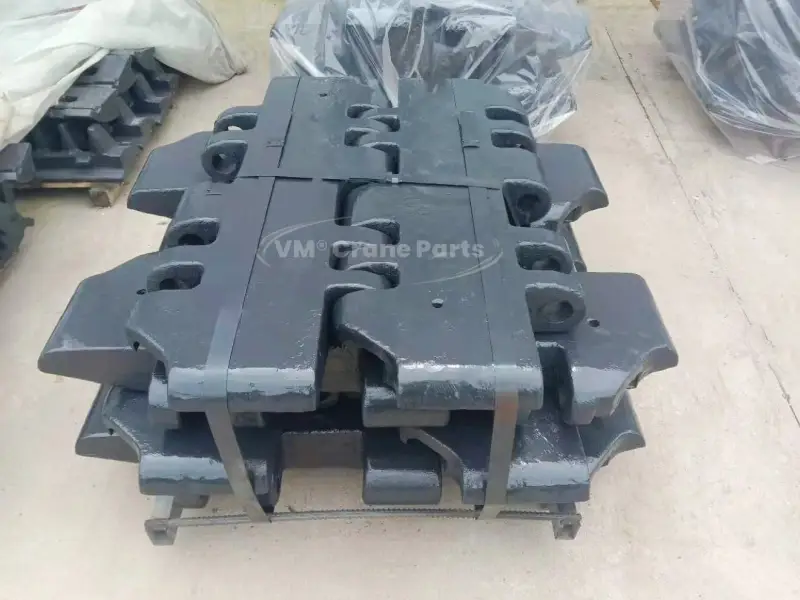

SANY SCC1500A Crane Undercarriage Parts
As a dedicated provider of SANY SCC1500A crawler crane parts, we provide an extensive array of parts such as track rollers, carrier rollers, sprockets, idlers, and track shoes, which have been precisely designed according to the specifications of the SCC1500A. Our crane undercarriage parts are made from high-performance alloy steels such as 40Mn2 and 40Cr, with a hardened surface achieved through an induction hardening process (HRC 52-58). We know that the SANY SCC1500A has a unique undercarriage design; the track shoe measures around 1100 mm, so a proper fit is extremely important for efficient operation. From regular maintenance to undercarriage overhaul, our genuine SANY SCC1500A crawler crane undercarriage parts ensure a low level of downtime.

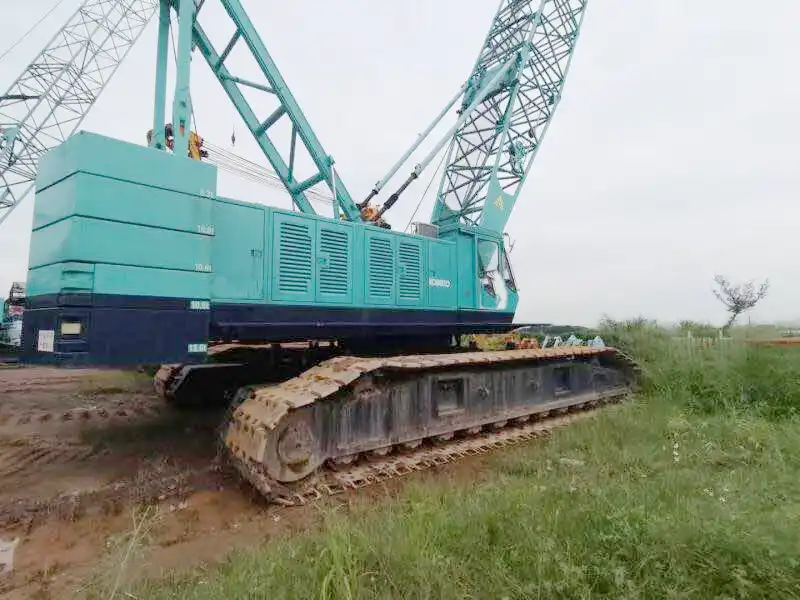

Crawler Crane 150 Ton- Kobelco 7150 Crawler Crane
Key Specifications
Max. Lifting Capacity: 150 tons
Base Boom Length: 18.29 m (60 ft)
Max. Main Boom Length: 82.3 m (270 ft)
Max. Fixed Jib Length: 30.48 m (100 ft)
Max. Main Boom + Jib Combination: 103.63 m (340 ft)
Max. Lifting Height: Approx. 53 m
Engine Model: Mitsubishi 6D22-TC
Main/Auxiliary Hoist Single-Line Speed: Max. 125 m/min
Swing Speed: 1.1 – 2.2 rpm
Travel Speed: 0.6 – 1.2 km/h
Max. Gradeability: 30%
Track Shoe Width: 1,070 mm (42 in)
Number of Track Shoes (Per Side): 62

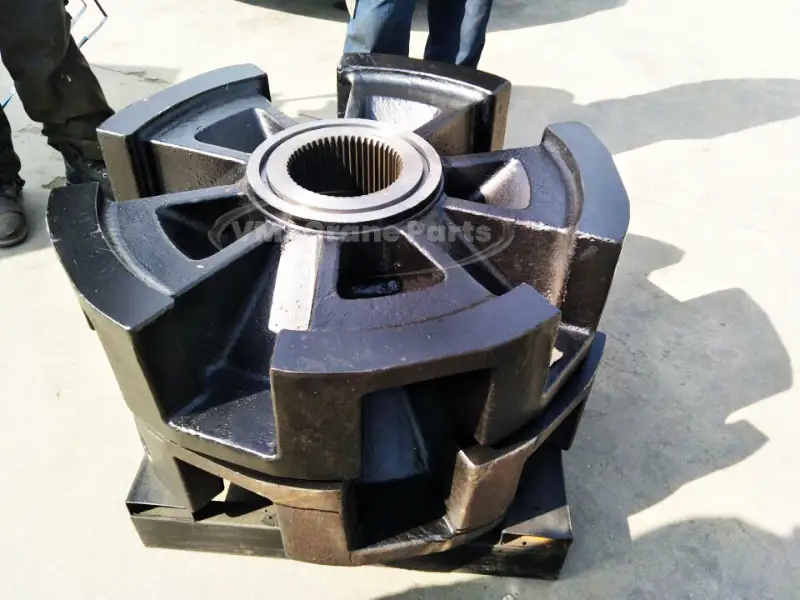

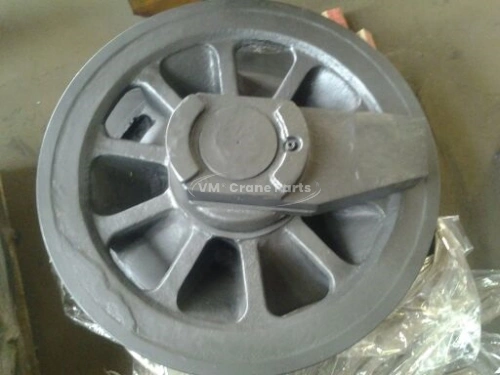

Kobelco 7150 Crawler Crane Undercarriage Parts
We have been established to meet the demands of the Kobelco 7150 crawler crane by providing them with undercarriage parts, which include track rollers, carrier rollers, sprockets, idlers, and track shoes. In addition to providing our products, we also build a good reputation with our clients through fast shipping, guarantee policies, and an effective service network. For the Kobelco 7150 crawler crane model, our stock will always have enough items available during the whole year; they can be shipped immediately within one day after receiving orders, thus reducing your downtime of machinery. All items will be warranted with their quality for up to 2,500 hours of work.
