Description

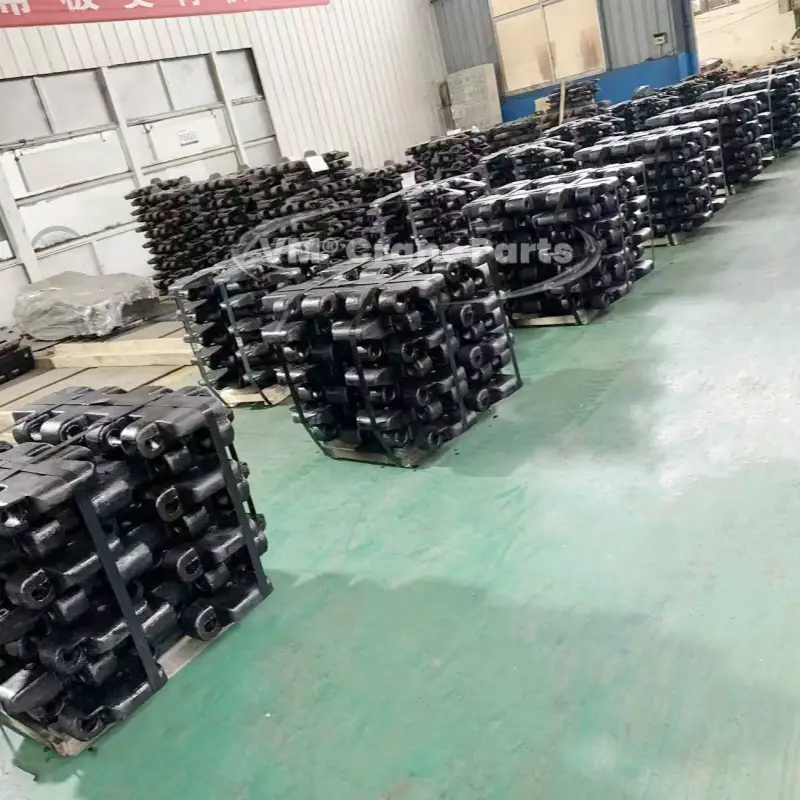

A track shoe is a vital undercarriage part for the Nippon Sharyo DHP80 crawler crane. Its primary functions are to bear the heavy load of the machine and to enlarge the surface area in contact with the ground. By distributing the machine’s weight more evenly, the track shoe enhances stability on soft or uneven terrain, reduces ground pressure, and helps prevent the equipment from sinking into loose surfaces such as mud, sand, or gravel.
Key Specifications Of Nippon Sharyo DHP80 Track Shoe
Parameter Details
Model: Nippon Sharyo DHP80 Crawler Crane

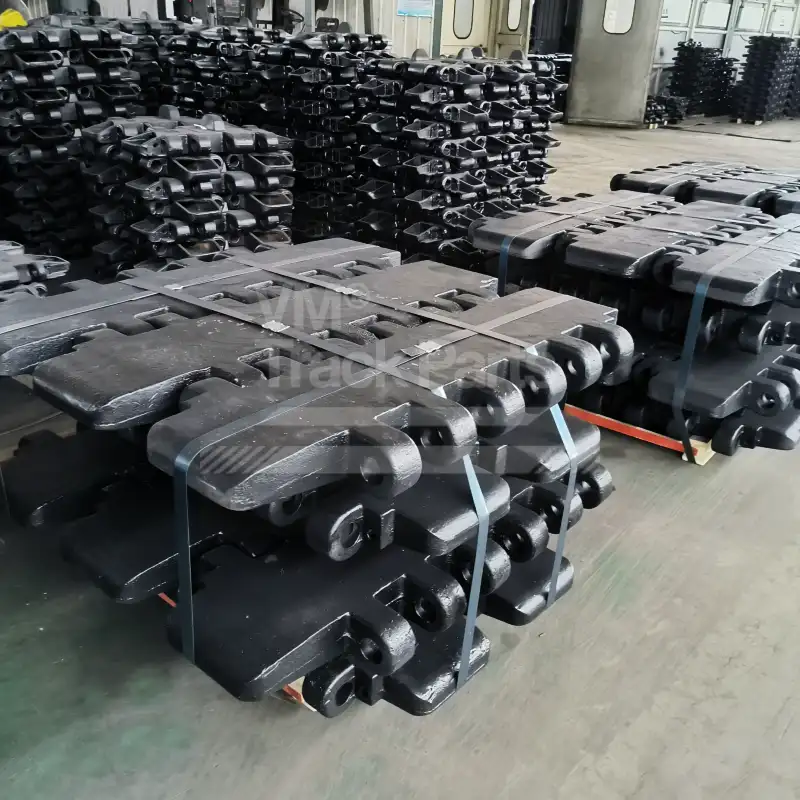

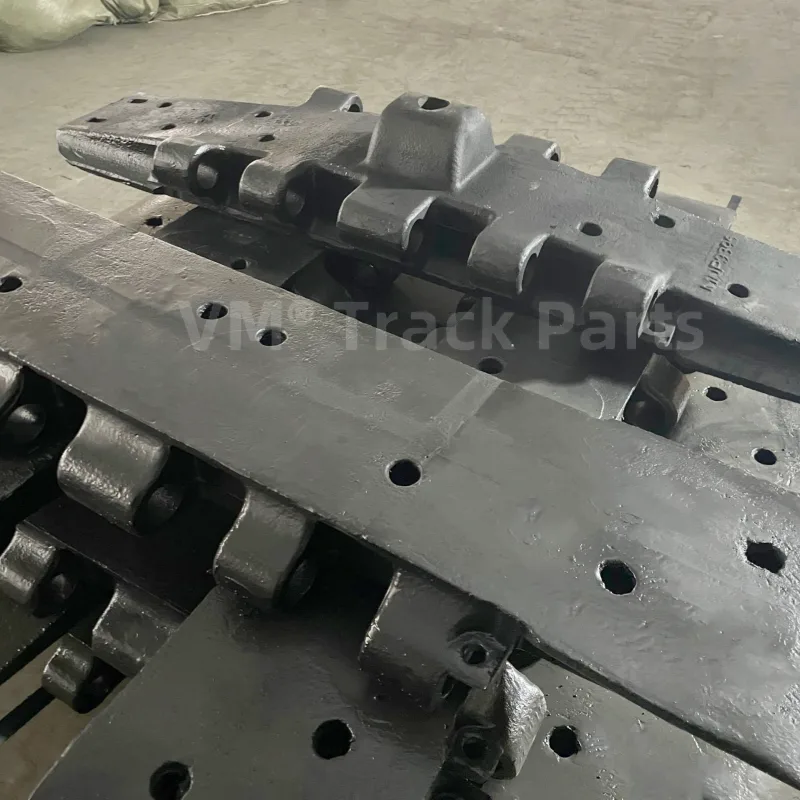

Part Name: Track Shoe / Track Pad / Crawler Plate
Manufacturing Process: Advanced Casting Technology
Heat Treatment: Whole Quenching & Tempering + Surface Hardening
Material:35SiMn
Surface Hardness: HRC 48–55 (wear-resistant layer)
Core Hardness: HRC 32–38 (tough ductile core)
Certification: ISO 9001
Brand: VM®
Packaging: Export standard pallet/plywood case
Payment Terms: T/T, L/C
Nippon Sharyo DHP80 Track Shoe Production Process

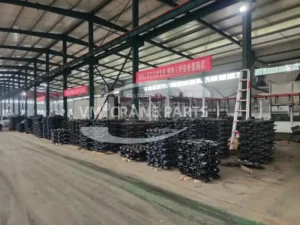

Built to ISO 9001 Standards
All VM® track shoes are produced in ISO 9001-certified facilities. Every batch undergoes rigorous quality checks:
Chemical composition – Verified by spectrometer to match specified alloy grades.
Hardness testing – Rockwell HRC measurements on both surface and core.

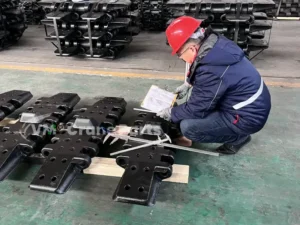

Dimensional inspection – Bolt hole diameters, pitch, and grouser height checked against original drawings.
Non-destructive testing – Magnetic particle inspection (MT) for surface cracks; ultrasonic testing (UT) for internal soundness.
Certificates are available upon request, giving you full traceability and confidence.
